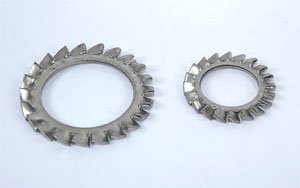

Serrated Washer
We manufacture Serrated Washer as per DIN 6798 specifications.
Material: MS Spring Steel AISI 304 and AISI 316,
Form A (External)
Serrated Washer
Form J (Internal)
DIN 6798 Specifications:
| d1 | Used for | d2 | s |
| 17 | M 16 | 26 | 1.2 |
| 21 | M 20 | 33 | 1.4 |
| 25 | M 24 | 38 | 1.5 |
| 33 | M 32 | 48 | 1.5 |
| 40 | M 40 | 58 | 1.5 |
| 50 | M 50 | 66 | 1.5 |
| 63 | M 63 | 80 | 1.5 |
| 75 | M 75 | 95 | 1.6 |
| 90 | M 90 | 110 | 1.6 |
All measurements in millimeters (mm)*
